HL-DL

Description

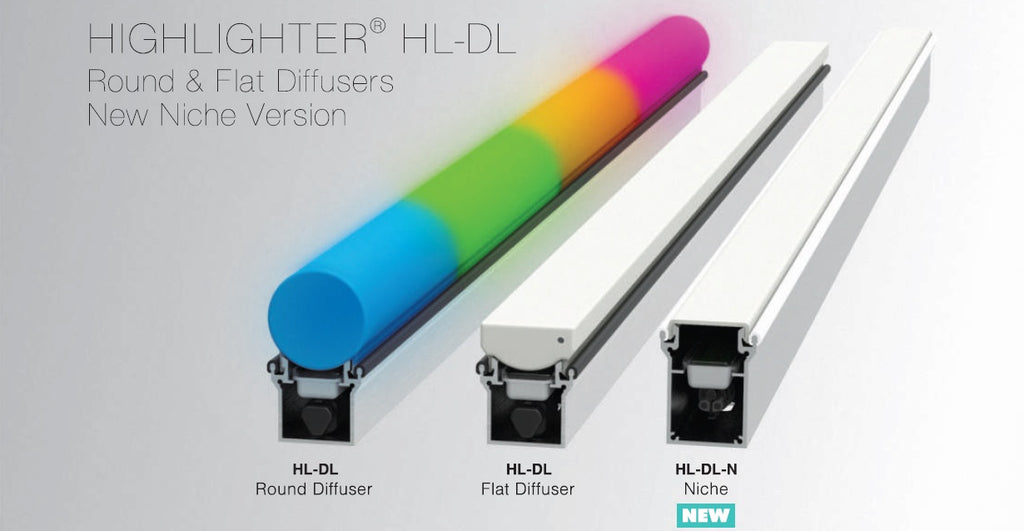

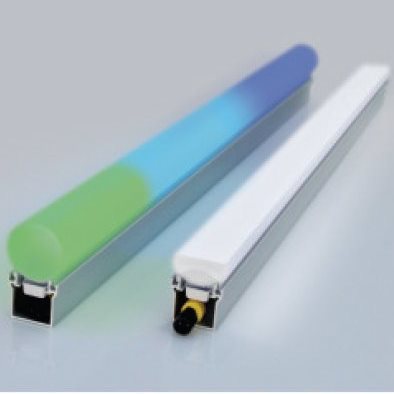

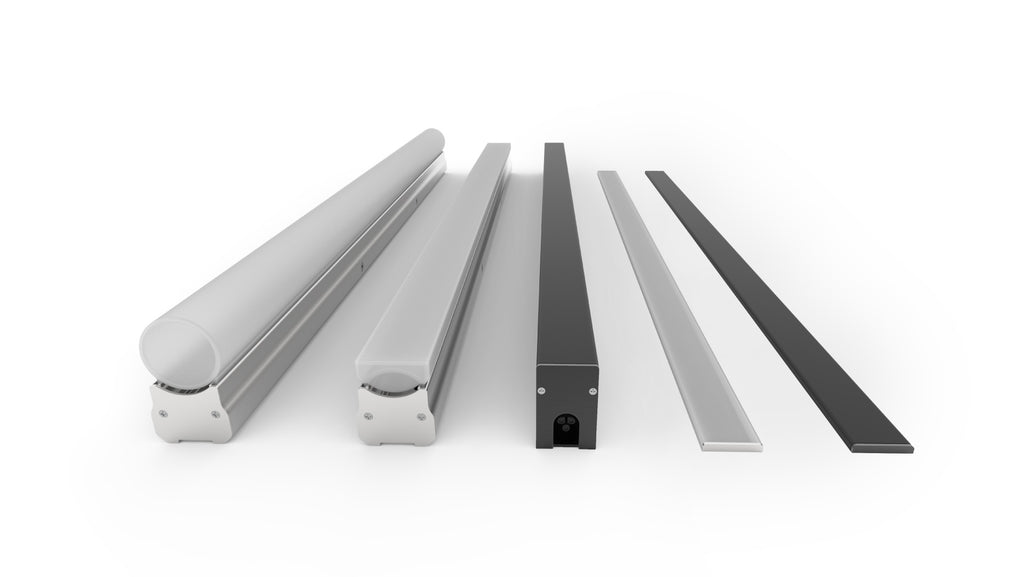

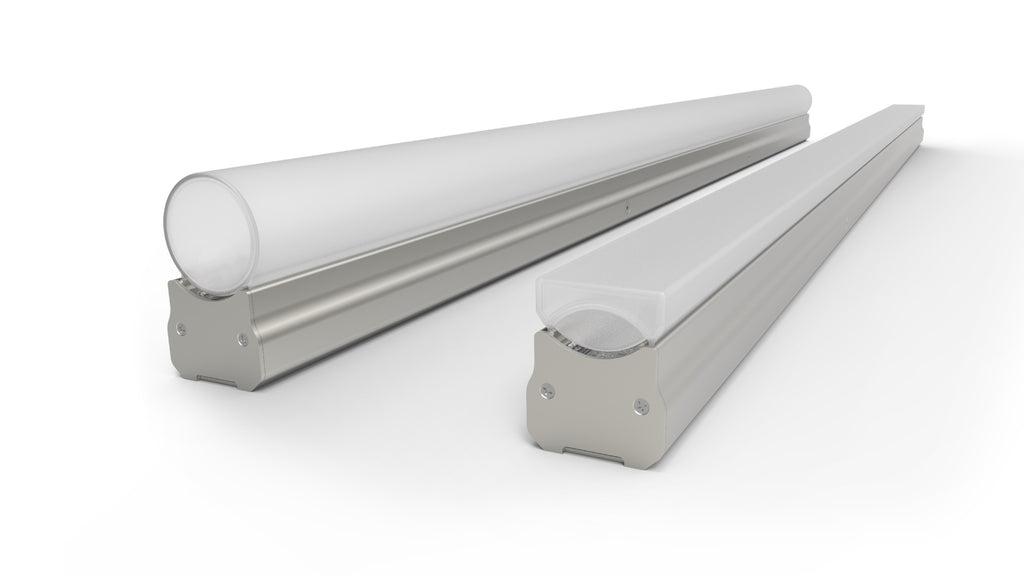

Direct view architectural delineation LED lighting system; Features: Up to 4000 cd/m2 luminance on diffuser surface; Power consumption: 5W maximum per 300mm/1ft; 300mm/1ft modular design for curved or straight sections; 18 mid-power LEDs per 300mm/1ft for perfectly uniform diffuser illumination; Monochromatic or RGB & RGBW High Output LEDs with COLOR-AMP®; LED pitch is maintained within and between luminaires: no dark spots between fixtures; DMX, DALI or 0~10V dimming through GVA’s power-data equipment; Through wiring for end-to-end connection via snap-in connectors: no junction boxes; LED modules fully sealed for outdoor use: IP66 rated; Round diffuser: 50mm diameter; Flat diffuser: 46mm wide x 20mm high; Diffuser profiles: UV stable and impact resistant PMMA (acrylic), no yellowing over time; Architectural grade anodized aluminum mounting profile, no visible fasteners; Meets 3G ANSI C136.31-2010 Vibration standard for Bridge and Overpass Applications; Projected lifetime: 115,000hrs @ 23°C, 73°F (L70); Operating temperature: -40°C to +50°C, -40°F to 122°F; INFINITY® technology: exceptionally long runs (up to 300m or 1000ft) from a single power source; Options; Non-standard diffuser lengths

Download Specifications
Download Photometics

Details
